Unleash the Power of Millimeter-Wave Designs with Astra MT77 PCB

Unleash the Power of Millimeter-Wave Designs with Astra MT77 PCB

In the rapidly evolving world of high-frequency electronics, design engineers are constantly seeking materials that can keep pace with the ever-increasing demands of cutting-edge applications. Today, I'm thrilled to introduce you to a game-changing solution from Astra – the exceptional MT77 PCB.

Exceptional Electrical Performance

At the heart of this remarkable 2-layer PCB is the Astra MT77 laminate, a breakthrough dielectric material engineered for exceptional performance at millimeter-wave frequencies and beyond. With a consistent dielectric constant (Dk) of 3.0 at 2 and 10GHz and an ultra-low dissipation factor (Df) of just 0.0017, this material ensures unparalleled signal integrity and low insertion loss, even in the most demanding high-frequency designs.

Robust and Reliable Construction

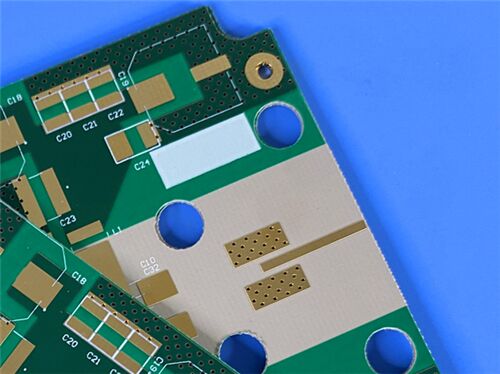

Boasting a compact 48.5mm x 43.3mm footprint with a tight tolerance of ±0.15mm, this 2-layer PCB features a slim 0.33mm finished thickness and robust 1oz (1.4 mils) copper layers. The board's impressive specifications include a minimum trace/space of 4/4 mils, minimum hole size of 0.2mm, and an Immersion Gold surface finish for reliable solderability and long-term performance.

Uncompromising Reliability

Engineered for superior reliability, the MT77 PCB features a CTE closely matched to copper, ensuring dimensional stability and resistance to warpage and deformation, even in the most demanding environments. Manufactured to the stringent IPC-Class-2 standard and subjected to 100% electrical testing, this solution is designed to exceed industry expectations.

Versatile Millimeter-Wave Applications

Whether your focus is on long-range antennas for automotive radar systems, high-performance 5G infrastructure, or other cutting-edge millimeter-wave electronics, the MT77 PCB is engineered to elevate your designs. Its exceptional electrical performance, combined with its robust construction and environmental friendliness, make it an ideal choice for a wide range of next-generation high-frequency applications.

Experience the unparalleled power and reliability of this exceptional 2-layer MT77 PCB solution, available worldwide from Astra. Unlock the boundless potential of your millimeter-wave designs today.
